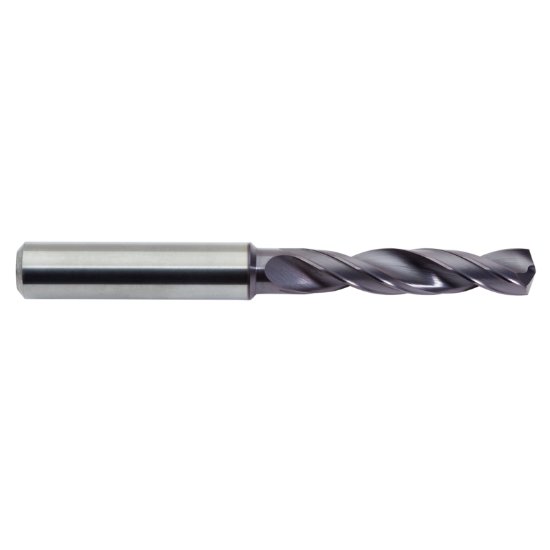

Picture of M.A. Ford CXDSS 1800AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.708 Dia 0.708 Shank 4.842 OAL 2 Flute 2.874 Flute Length Carbide AlTiN

M.A. Ford CXDSS 1800AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.708 Dia 0.708 Shank 4.842 OAL 2 Flute 2.874 Flute Length Carbide AlTiN

Part Number: MAF06771 ISO: CXDSS 1800AP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118974
Vendor: Sussex Tool and Supply
$311.87
M.A. FORD CXDSS 1800AP CXD 18.0MM SOLID STUB Carbide AlTiN Cyclone XD 3.0XD Flute 2.8740 73.00MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.7087 18.00MM
Overall Length 4.8425 123.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7087 18.00MM
Flutes/Inserts 2
Tool Dia 0.7087 18.00MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 2.8740 73.00MM
Cut Dia Min 0.7087 18.00MM
Dia Deep 3.0x Dia
Multi Spindle Yes
