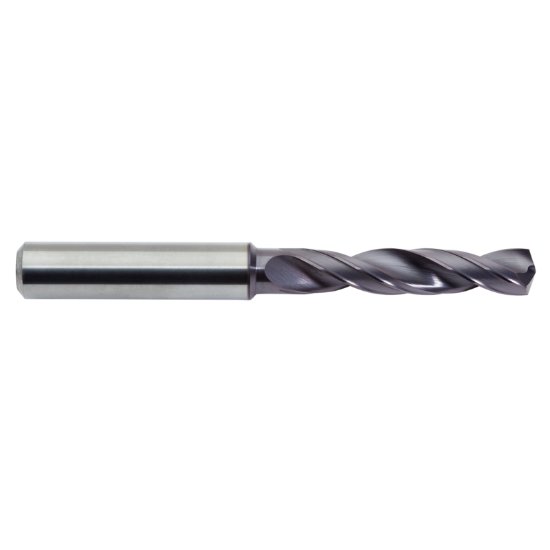

Picture of M.A. Ford CXDSS 1650AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.649 Dia 0.708 Shank 4.842 OAL 2 Flute 2.874 Flute Length Carbide AlTiN

M.A. Ford CXDSS 1650AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.649 Dia 0.708 Shank 4.842 OAL 2 Flute 2.874 Flute Length Carbide AlTiN

Part Number: MAF06766 ISO: CXDSS 1650AP
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1118971
Vendor: Sussex Tool and Supply
$422.05

Description

M.A. FORD CXDSS 1650AP CXD 16.5MM SOLID STUB Carbide AlTiN Cyclone XD 3.0XD Flute 2.8740 73.00MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Multi Spindle Yes
Dimensions & Sizing
Overall Length 4.8425 123.00MM
Shank/Pilot Dia 0.7087 18.00MM
Flutes/Inserts 2
Tool Dia 0.6496 16.50MM
Flute Length 2.8740 73.00MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Cut Dia Min 0.6496 16.50MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
