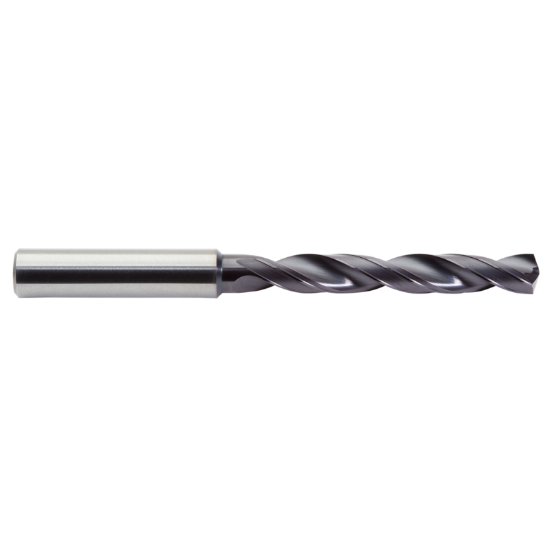

Picture of M.A. Ford CXDSR5625AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.562 Dia 0.562 Shank 5.240 OAL 2 Flute 3.268 Flute Length Carbide AlTiN

M.A. Ford CXDSR5625AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.562 Dia 0.562 Shank 5.240 OAL 2 Flute 3.268 Flute Length Carbide AlTiN

Part Number: MAF06605 ISO: CXDSR5625AP
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1118858
Vendor: Sussex Tool and Supply
$412.59

Description

M.A. FORD CXDSR5625AP CXD DRL 9/16 SOLID REG Carbide AlTiN Cyclone XD 5.0XD Flute 3.2680 83.01MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Multi Spindle Yes
Dimensions & Sizing
Overall Length 5.2400 133.10MM
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Flutes/Inserts 2
Tool Dia 0.5625 14.29MM - 9/16
Flute Length 3.2680 83.01MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Cut Dia Min 0.5625 14.29MM - 9/16
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
