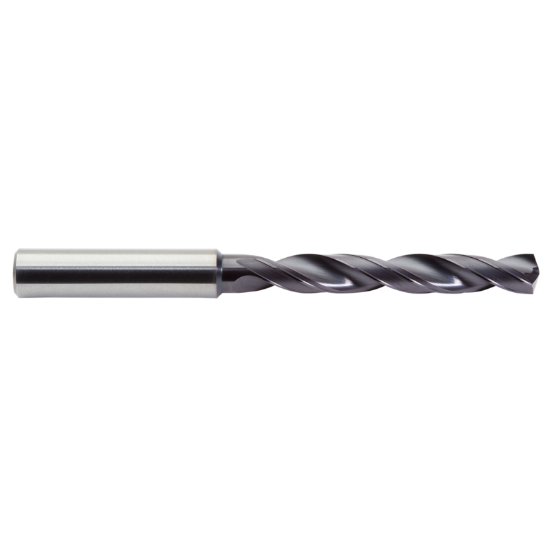

Picture of M.A. Ford CXDSR1520AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.152 Dia 0.156 Shank 2.910 OAL 2 Flute 1.417 Flute Length Carbide AlTiN

M.A. Ford CXDSR1520AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.152 Dia 0.156 Shank 2.910 OAL 2 Flute 1.417 Flute Length Carbide AlTiN

Part Number: MAF06481 ISO: CXDSR1520AP
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1118825
Vendor: Sussex Tool and Supply
$88.33

Description

M.A. FORD CXDSR1520AP CXD #24 SOLID REGULAR Carbide AlTiN Cyclone XD 5.0XD Flute 1.4170 35.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Multi Spindle Yes
Dimensions & Sizing
Overall Length 2.9100 73.91MM
Shank/Pilot Dia 0.1562 3.96MM - 5/32
Flutes/Inserts 2
Tool Dia 0.1520 3.86MM - #24
Flute Length 1.4170 35.99MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Cut Dia Min 0.1520 3.86MM - #24
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
