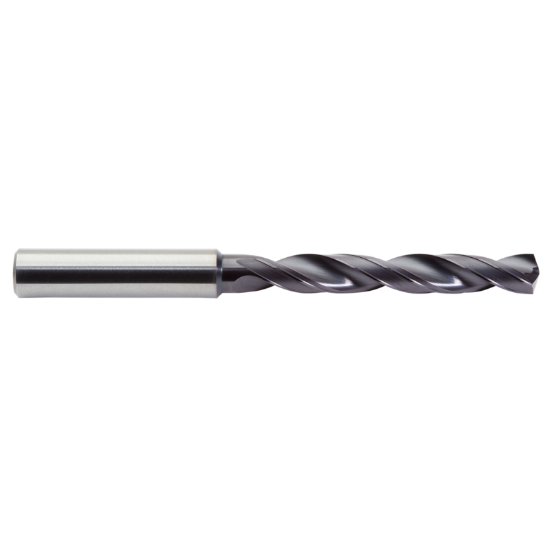

Picture of M.A. Ford CXDSR 1550AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.610 Dia 0.629 Shank 5.236 OAL 2 Flute 3.268 Flute Length Carbide AlTiN

M.A. Ford CXDSR 1550AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.610 Dia 0.629 Shank 5.236 OAL 2 Flute 3.268 Flute Length Carbide AlTiN

Part Number: MAF06611 ISO: CXDSR 1550AP
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1118817
Vendor: Sussex Tool and Supply
$412.59

Description

M.A. FORD CXDSR 1550AP CXD DRL 15.5MM SOLID REG Carbide AlTiN Cyclone XD 5.0XD Flute 3.2680 83.01MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Multi Spindle Yes
Dimensions & Sizing
Overall Length 5.2362 133.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.6102 15.50MM
Flute Length 3.2680 83.01MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Cut Dia Min 0.6102 15.50MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
