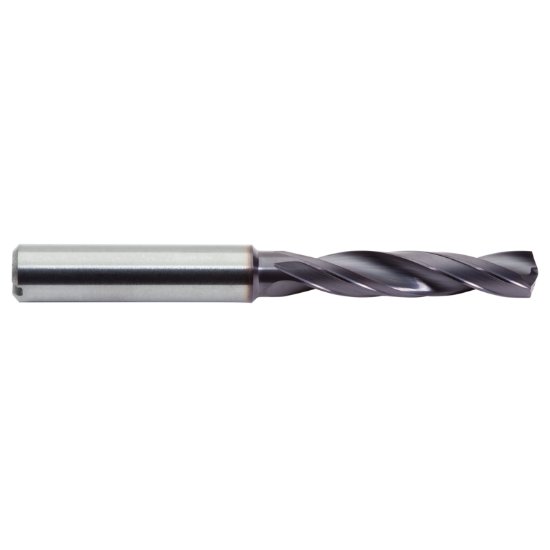

Picture of M.A. Ford CXDCS 1600AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.629 Dia 0.629 Shank 4.527 OAL 2 Flute 2.559 Flute Length Carbide AlTiN

M.A. Ford CXDCS 1600AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.629 Dia 0.629 Shank 4.527 OAL 2 Flute 2.559 Flute Length Carbide AlTiN

Part Number: MAF06925 ISO: CXDCS 1600AP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118670
Vendor: Sussex Tool and Supply
$329.40
M.A. FORD CXDCS 1600AP CXD 16.0MM 3X COOLANT Carbide AlTiN Cyclone XD 3.0XD Flute 2.5590 65.00MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.6299 16.00MM
Overall Length 4.5276 115.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.6299 16.00MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 2.5590 65.00MM
Cut Dia Min 0.6299 16.00MM
Dia Deep 3.0x Dia
Multi Spindle Yes
