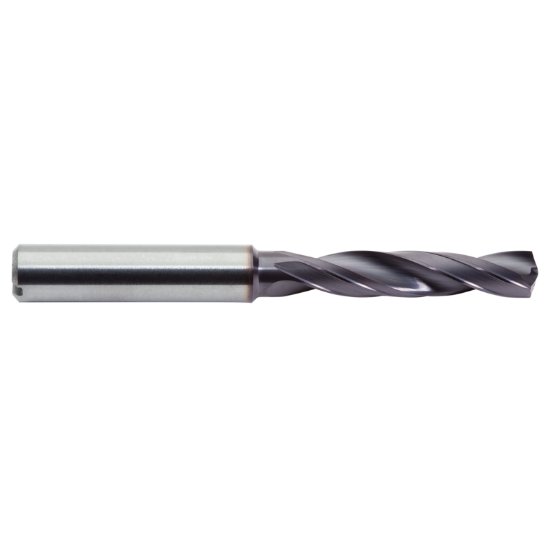

Picture of M.A. Ford CXDCS 1370AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.539 Dia 0.551 Shank 4.212 OAL 2 Flute 2.362 Flute Length Carbide AlTiN

M.A. Ford CXDCS 1370AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.539 Dia 0.551 Shank 4.212 OAL 2 Flute 2.362 Flute Length Carbide AlTiN

Part Number: MAF06913 ISO: CXDCS 1370AP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118661
Vendor: Sussex Tool and Supply
$254.00
M.A. FORD CXDCS 1370AP CXD 13.7MM 3X COOLANT Carbide AlTiN Cyclone XD 3.0XD Flute 2.3620 59.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.5512 14.00MM
Overall Length 4.2126 107.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5512 14.00MM
Flutes/Inserts 2
Tool Dia 0.5394 13.70MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 2.3620 59.99MM
Cut Dia Min 0.5394 13.70MM
Dia Deep 3.0x Dia
Multi Spindle Yes
