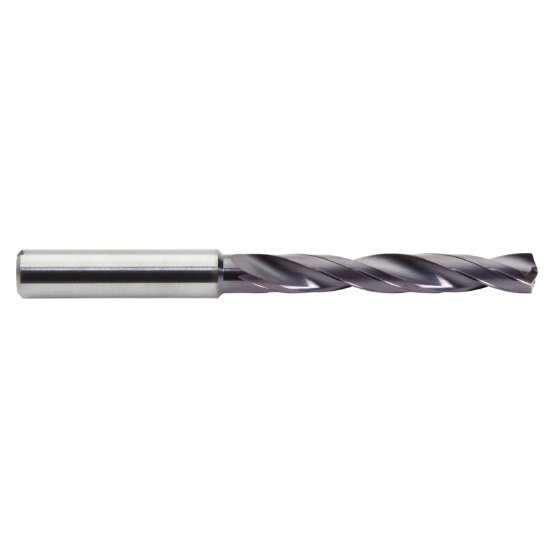

Picture of M.A. Ford CXDCR6875AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.687 Dia 0.687 Shank 5.630 OAL 2 Flute 3.661 Flute Length Carbide AlTiN

M.A. Ford CXDCR6875AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.687 Dia 0.687 Shank 5.630 OAL 2 Flute 3.661 Flute Length Carbide AlTiN

Part Number: MAF07079 ISO: CXDCR6875AP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118557
Vendor: Sussex Tool and Supply
$498.53
M.A. FORD CXDCR6875AP CXD DRL 11/16 COOL REG Carbide AlTiN Cyclone XD 5.0XD Flute 3.6610 92.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.6875 17.46MM
Overall Length 5.6300 143.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6875 17.46MM - 11/16
Flutes/Inserts 2
Tool Dia 0.6875 17.46MM - 11/16
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 3.6610 92.99MM
Cut Dia Min 0.6875 17.46MM - 11/16
Dia Deep 5.0x Dia
Multi Spindle Yes
