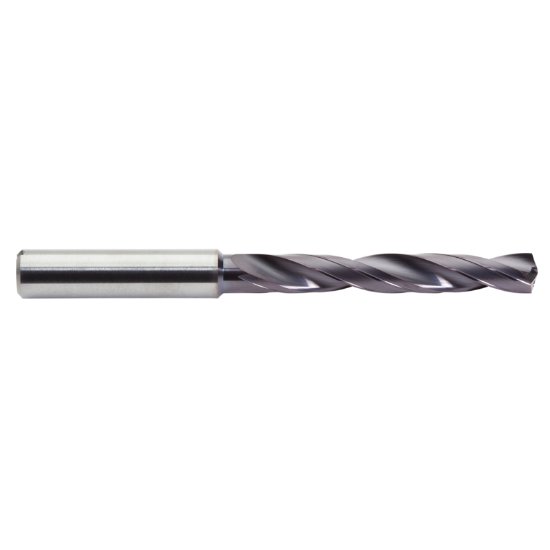

Picture of M.A. Ford CXDCR6562AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.656 Dia 0.687 Shank 5.630 OAL 2 Flute 3.661 Flute Length Carbide AlTiN

M.A. Ford CXDCR6562AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.656 Dia 0.687 Shank 5.630 OAL 2 Flute 3.661 Flute Length Carbide AlTiN

Part Number: MAF07077 ISO: CXDCR6562AP
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1118556
Vendor: Sussex Tool and Supply
$612.35

Description

M.A. FORD CXDCR6562AP CXD DRL 21/32 COOL REG Carbide AlTiN Cyclone XD 5.0XD Flute 3.6610 92.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Multi Spindle Yes
Dimensions & Sizing
Overall Length 5.6300 143.00MM
Shank/Pilot Dia 0.6875 17.46MM - 11/16
Flutes/Inserts 2
Tool Dia 0.6563 16.67MM - 21/32
Flute Length 3.6610 92.99MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Cut Dia Min 0.6562 16.67MM - 21/32
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
