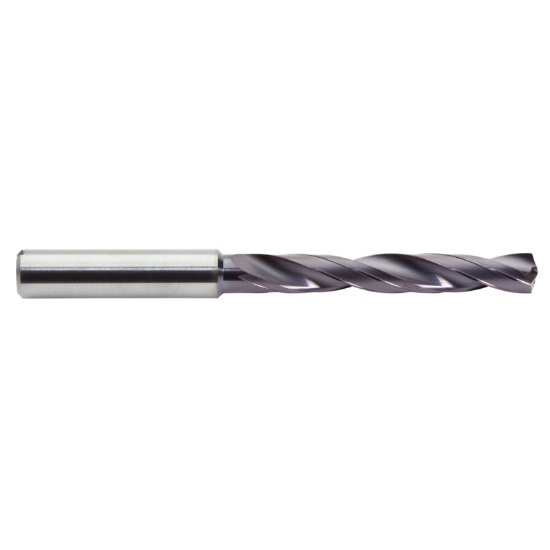

Picture of M.A. Ford CXDCR5938AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.593 Dia 0.625 Shank 5.240 OAL 2 Flute 3.268 Flute Length Carbide AlTiN

M.A. Ford CXDCR5938AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.593 Dia 0.625 Shank 5.240 OAL 2 Flute 3.268 Flute Length Carbide AlTiN

Part Number: MAF07068 ISO: CXDCR5938AP
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1118554
Vendor: Sussex Tool and Supply
$534.93

Description

M.A. FORD CXDCR5938AP CXD DRL 19/32 COOL REG Carbide AlTiN Cyclone XD 5.0XD Flute 3.2680 83.01MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Multi Spindle Yes
Dimensions & Sizing
Overall Length 5.2400 133.10MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.5938 15.08MM - 19/32
Flute Length 3.2680 83.01MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Cut Dia Min 0.5938 15.08MM - 19/32
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
