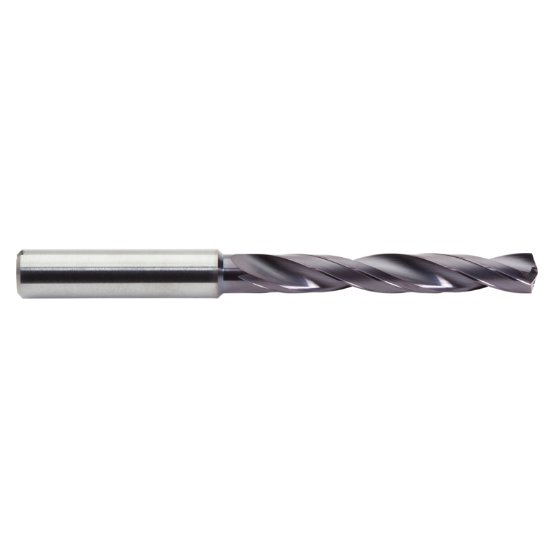

Picture of M.A. Ford CXDCR5625AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.562 Dia 0.562 Shank 5.240 OAL 2 Flute 3.268 Flute Length Carbide AlTiN

M.A. Ford CXDCR5625AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.562 Dia 0.562 Shank 5.240 OAL 2 Flute 3.268 Flute Length Carbide AlTiN

Part Number: MAF07064 ISO: CXDCR5625AP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118553
Vendor: Sussex Tool and Supply
$361.72
M.A. FORD CXDCR5625AP CXD DRL 9/16 COOL REG Carbide AlTiN Cyclone XD 5.0XD Flute 3.2680 83.01MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.5625 14.29MM
Overall Length 5.2400 133.10MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Flutes/Inserts 2
Tool Dia 0.5625 14.29MM - 9/16
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 3.2680 83.01MM
Cut Dia Min 0.5625 14.29MM - 9/16
Dia Deep 5.0x Dia
Multi Spindle Yes
