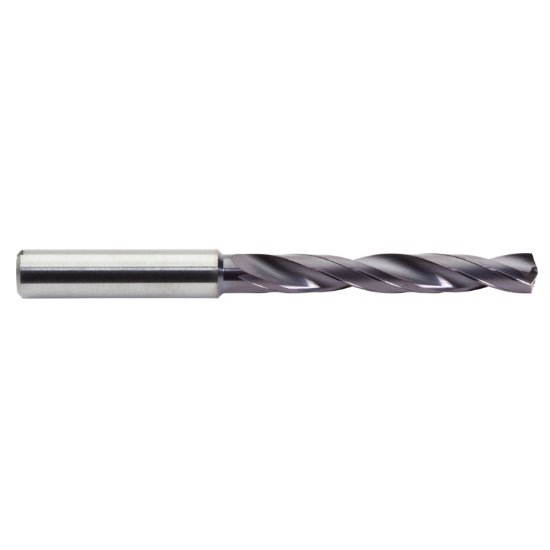

Picture of M.A. Ford CXDCR5156AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.515 Dia 0.562 Shank 4.880 OAL 2 Flute 3.031 Flute Length Carbide AlTiN

M.A. Ford CXDCR5156AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.515 Dia 0.562 Shank 4.880 OAL 2 Flute 3.031 Flute Length Carbide AlTiN

Part Number: MAF07058 ISO: CXDCR5156AP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118550
Vendor: Sussex Tool and Supply
$357.77
M.A. FORD CXDCR5156AP CXD DRL 33/64 COOL REG Carbide AlTiN Cyclone XD 5.0XD Flute 3.0310 76.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.5625 14.29MM
Overall Length 4.8800 123.95MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Flutes/Inserts 2
Tool Dia 0.5156 13.10MM - 33/64
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 3.0310 76.99MM
Cut Dia Min 0.5156 13.10MM - 33/64
Dia Deep 5.0x Dia
Multi Spindle Yes
