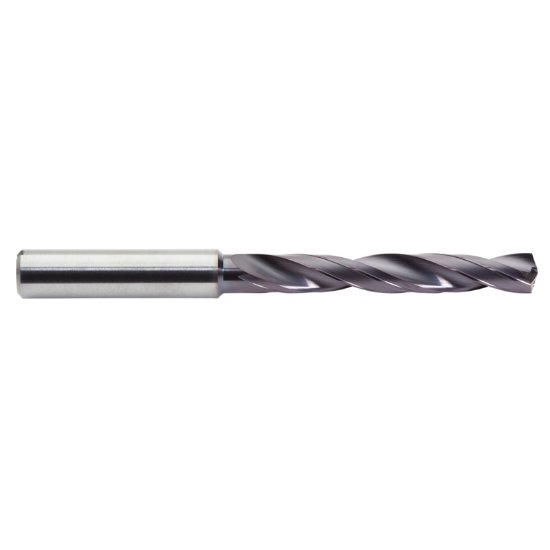

Picture of M.A. Ford CXDCR4844AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.484 Dia 0.500 Shank 4.880 OAL 2 Flute 3.031 Flute Length Carbide AlTiN

M.A. Ford CXDCR4844AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.484 Dia 0.500 Shank 4.880 OAL 2 Flute 3.031 Flute Length Carbide AlTiN

Part Number: MAF07051 ISO: CXDCR4844AP
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1118548
Vendor: Sussex Tool and Supply
$409.95

Description

M.A. FORD CXDCR4844AP CXD DRL 31/64 COOL REG Carbide AlTiN Cyclone XD 5.0XD Flute 3.0310 76.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Multi Spindle Yes
Dimensions & Sizing
Overall Length 4.8800 123.95MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.4844 12.30MM - 31/64
Flute Length 3.0310 76.99MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Cut Dia Min 0.4844 12.30MM - 31/64
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
