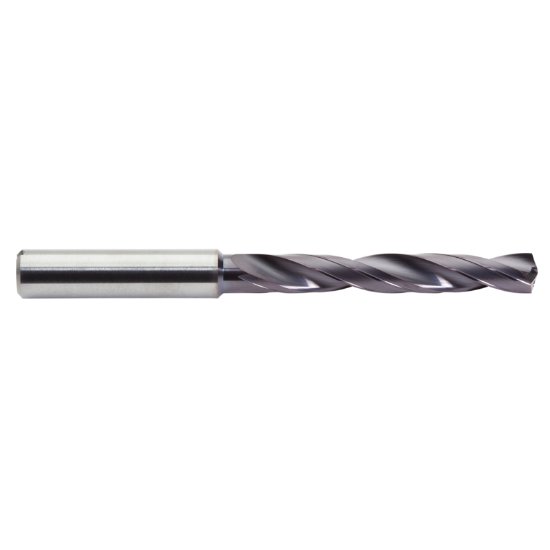

Picture of M.A. Ford CXDCR 1800AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.708 Dia 0.708 Shank 5.629 OAL 2 Flute 3.661 Flute Length Carbide AlTiN

M.A. Ford CXDCR 1800AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.708 Dia 0.708 Shank 5.629 OAL 2 Flute 3.661 Flute Length Carbide AlTiN

Part Number: MAF07081 ISO: CXDCR 1800AP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118508
Vendor: Sussex Tool and Supply
$498.53
M.A. FORD CXDCR 1800AP CXD DRL 18.0MM COOL REG Carbide AlTiN Cyclone XD 5.0XD Flute 3.6610 92.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.7087 18.00MM
Overall Length 5.6299 143.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7087 18.00MM
Flutes/Inserts 2
Tool Dia 0.7087 18.00MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 3.6610 92.99MM
Cut Dia Min 0.7087 18.00MM
Dia Deep 5.0x Dia
Multi Spindle Yes
