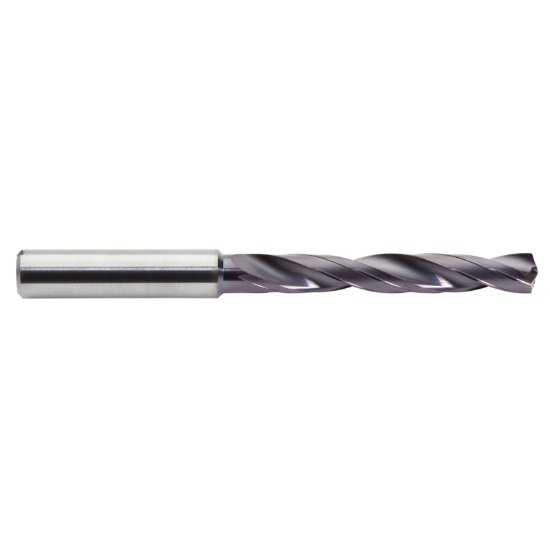

Picture of M.A. Ford CXDCR 1283AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.505 Dia 0.551 Shank 4.881 OAL 2 Flute 3.031 Flute Length Carbide AlTiN

M.A. Ford CXDCR 1283AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.505 Dia 0.551 Shank 4.881 OAL 2 Flute 3.031 Flute Length Carbide AlTiN

Part Number: MAF07055 ISO: CXDCR 1283AP
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1118490
Vendor: Sussex Tool and Supply
$409.95

Description

M.A. FORD CXDCR 1283AP CXD DRL 12.83MM COOL REG Carbide AlTiN Cyclone XD 5.0XD Flute 3.0310 76.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Multi Spindle Yes
Dimensions & Sizing
Overall Length 4.8819 124.00MM
Shank/Pilot Dia 0.5512 14.00MM
Flutes/Inserts 2
Tool Dia 0.5051 12.83MM
Flute Length 3.0310 76.99MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Cut Dia Min 0.5051 12.83MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
