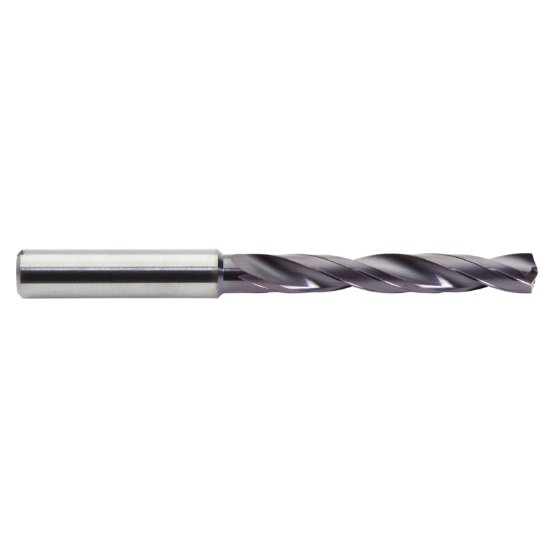

Picture of M.A. Ford CXDCR 1180AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.464 Dia 0.472 Shank 4.645 OAL 2 Flute 2.795 Flute Length Carbide AlTiN

M.A. Ford CXDCR 1180AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.464 Dia 0.472 Shank 4.645 OAL 2 Flute 2.795 Flute Length Carbide AlTiN

Part Number: MAF07046 ISO: CXDCR 1180AP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118484
Vendor: Sussex Tool and Supply
$221.32
M.A. FORD CXDCR 1180AP CXD DRL 11.8MM COOL REG Carbide AlTiN Cyclone XD 5.0XD Flute 2.7950 70.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.4724 12.00MM
Overall Length 4.6457 118.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4646 11.80MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 2.7950 70.99MM
Cut Dia Min 0.4646 11.80MM
Dia Deep 5.0x Dia
Multi Spindle Yes
