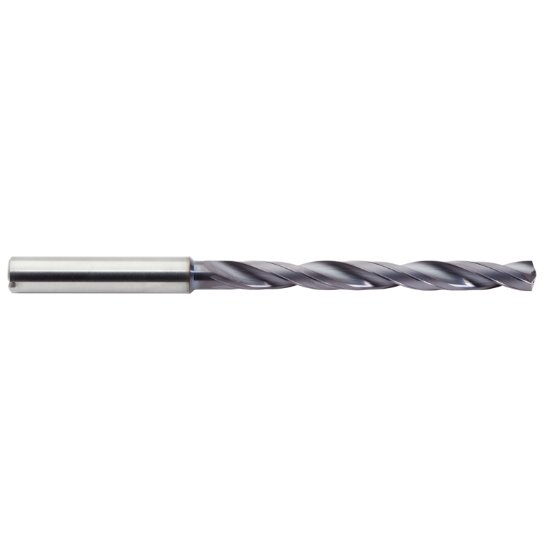

Picture of M.A. Ford CXDCLM1450AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.570 Dia 0.629 Shank 8.031 OAL 2 Flute 5.984 Flute Length Carbide AlTiN

M.A. Ford CXDCLM1450AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.570 Dia 0.629 Shank 8.031 OAL 2 Flute 5.984 Flute Length Carbide AlTiN

Part Number: MAF07240 ISO: CXDCLM1450AP
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1118388
Vendor: Sussex Tool and Supply
$684.73

Description

M.A. FORD CXDCLM1450AP CXD 14.50MM 8X COOLANT Carbide AlTiN Cyclone XD 8.0XD Flute 5.9840 151.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Multi Spindle Yes
Dimensions & Sizing
Overall Length 8.0315 204.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.5709 14.50MM
Flute Length 5.9840 151.99MM
Dia Deep 8.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Cut Dia Min 0.5709 14.50MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
