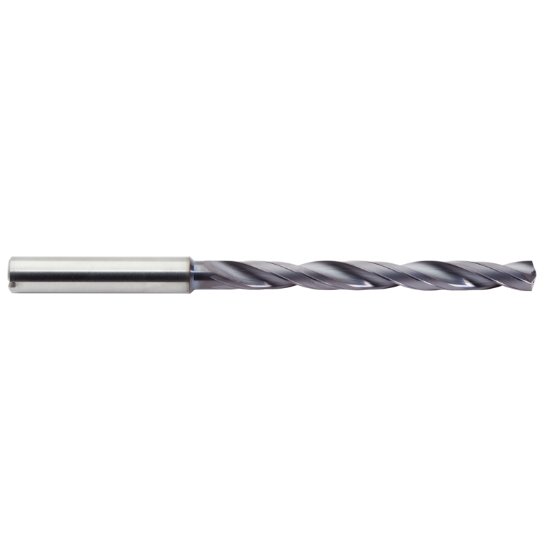

Picture of M.A. Ford CXDCLM1290AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.507 Dia 0.551 Shank 7.165 OAL 2 Flute 5.236 Flute Length Carbide AlTiN

M.A. Ford CXDCLM1290AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.507 Dia 0.551 Shank 7.165 OAL 2 Flute 5.236 Flute Length Carbide AlTiN

Part Number: MAF07231 ISO: CXDCLM1290AP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118383
Vendor: Sussex Tool and Supply
$457.93
M.A. FORD CXDCLM1290AP CXD 12.9MM 8X COOLANT Carbide AlTiN Cyclone XD 8.0XD Flute 5.2360 132.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.5512 14.00MM
Overall Length 7.1654 182.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5512 14.00MM
Flutes/Inserts 2
Tool Dia 0.5079 12.90MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 5.2360 132.99MM
Cut Dia Min 0.5079 12.90MM
Dia Deep 8.0x Dia
Multi Spindle Yes
