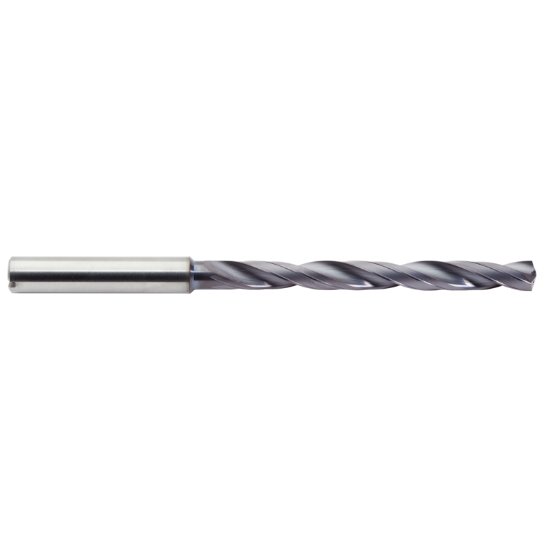

Picture of M.A. Ford CXDCLM1180AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.464 Dia 0.472 Shank 6.417 OAL 2 Flute 4.488 Flute Length Carbide AlTiN

M.A. Ford CXDCLM1180AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.464 Dia 0.472 Shank 6.417 OAL 2 Flute 4.488 Flute Length Carbide AlTiN

Part Number: MAF07220 ISO: CXDCLM1180AP
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1118377
Vendor: Sussex Tool and Supply
$448.17

Description

M.A. FORD CXDCLM1180AP CXD 11.8MM 8X COOLANT Carbide AlTiN Cyclone XD 8.0XD Flute 4.4880 114.00MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Multi Spindle Yes
Dimensions & Sizing
Overall Length 6.4173 163.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4646 11.80MM
Flute Length 4.4880 114.00MM
Dia Deep 8.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Cut Dia Min 0.4646 11.80MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
