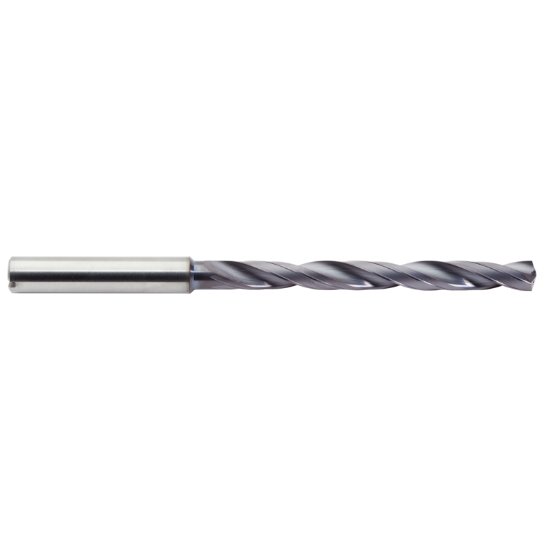

Picture of M.A. Ford CXDCLM1130AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.444 Dia 0.472 Shank 6.417 OAL 2 Flute 4.488 Flute Length Carbide AlTiN

M.A. Ford CXDCLM1130AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.444 Dia 0.472 Shank 6.417 OAL 2 Flute 4.488 Flute Length Carbide AlTiN

Part Number: MAF07215 ISO: CXDCLM1130AP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118372
Vendor: Sussex Tool and Supply
$331.17
M.A. FORD CXDCLM1130AP CXD 11.3MM 8X COOLANT Carbide AlTiN Cyclone XD 8.0XD Flute 4.4880 114.00MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.4724 12.00MM
Overall Length 6.4173 163.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4449 11.30MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 4.4880 114.00MM
Cut Dia Min 0.4449 11.30MM
Dia Deep 8.0x Dia
Multi Spindle Yes
