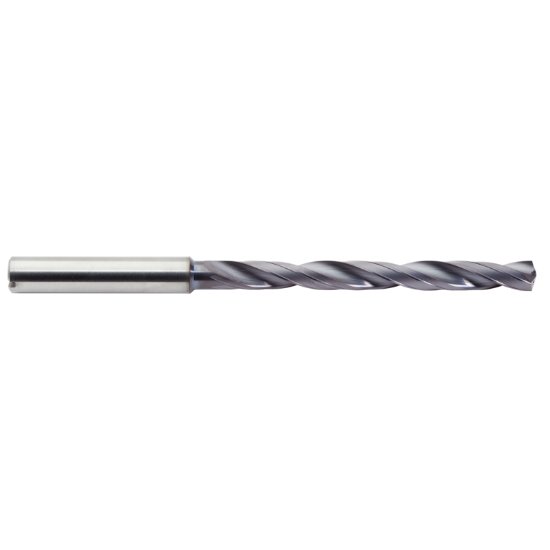

Picture of M.A. Ford CXDCLM1040AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.409 Dia 0.472 Shank 6.102 OAL 2 Flute 4.173 Flute Length Carbide AlTiN

M.A. Ford CXDCLM1040AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.409 Dia 0.472 Shank 6.102 OAL 2 Flute 4.173 Flute Length Carbide AlTiN

Part Number: MAF07204 ISO: CXDCLM1040AP
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1118363
Vendor: Sussex Tool and Supply
$383.36

Description

M.A. FORD CXDCLM1040AP CXD 10.4MM 8X COOLANT Carbide AlTiN Cyclone XD 8.0XD Flute 4.1730 105.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Multi Spindle Yes
Dimensions & Sizing
Overall Length 6.1024 155.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4094 10.40MM
Flute Length 4.1730 105.99MM
Dia Deep 8.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Cut Dia Min 0.4094 10.40MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
