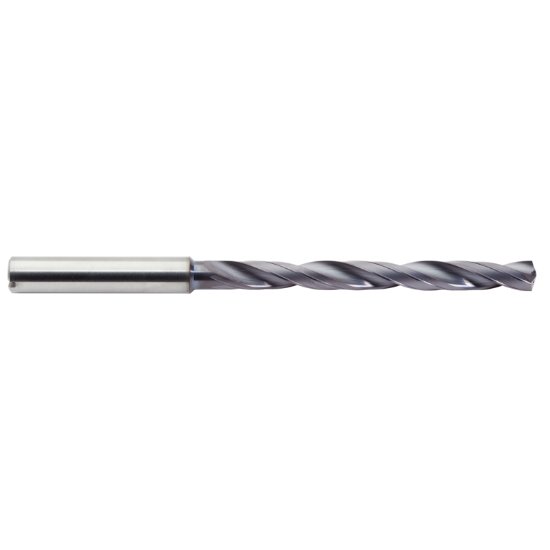

Picture of M.A. Ford CXDCLM1010AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.397 Dia 0.472 Shank 6.102 OAL 2 Flute 4.173 Flute Length Carbide AlTiN

M.A. Ford CXDCLM1010AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.397 Dia 0.472 Shank 6.102 OAL 2 Flute 4.173 Flute Length Carbide AlTiN

Part Number: MAF07200 ISO: CXDCLM1010AP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118360
Vendor: Sussex Tool and Supply
$241.29
M.A. FORD CXDCLM1010AP CXD 10.1MM 8X COOLANT Carbide AlTiN Cyclone XD 8.0XD Flute 4.1730 105.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.4724 12.00MM
Overall Length 6.1024 155.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.3976 10.10MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 4.1730 105.99MM
Cut Dia Min 0.3976 10.10MM
Dia Deep 8.0x Dia
Multi Spindle Yes
