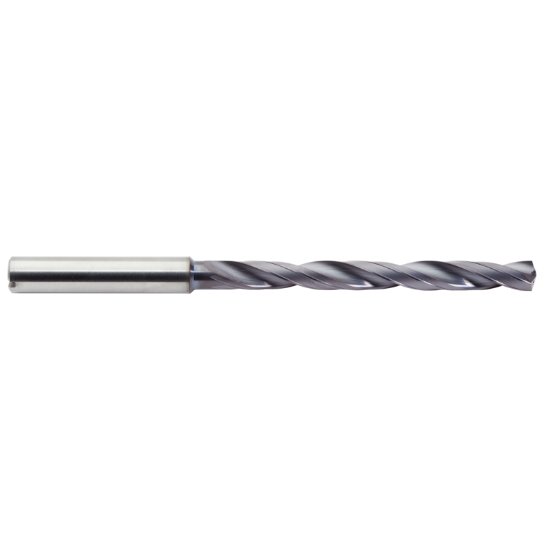

Picture of M.A. Ford CXDCL5625AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.562 Dia 0.629 Shank 8.031 OAL 2 Flute 5.984 Flute Length Carbide AlTiN

M.A. Ford CXDCL5625AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.562 Dia 0.629 Shank 8.031 OAL 2 Flute 5.984 Flute Length Carbide AlTiN

Part Number: MAF07239 ISO: CXDCL5625AP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118285
Vendor: Sussex Tool and Supply
$505.97
M.A. FORD CXDCL5625AP CXD 9/16 8X COOLANT DRL Carbide AlTiN Cyclone XD 8.0XD Flute 5.9840 151.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.6299 16.00MM
Overall Length 8.0315 204.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.5625 14.29MM - 9/16
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 5.9840 151.99MM
Cut Dia Min 0.5625 14.29MM - 9/16
Dia Deep 8.0x Dia
Multi Spindle Yes
