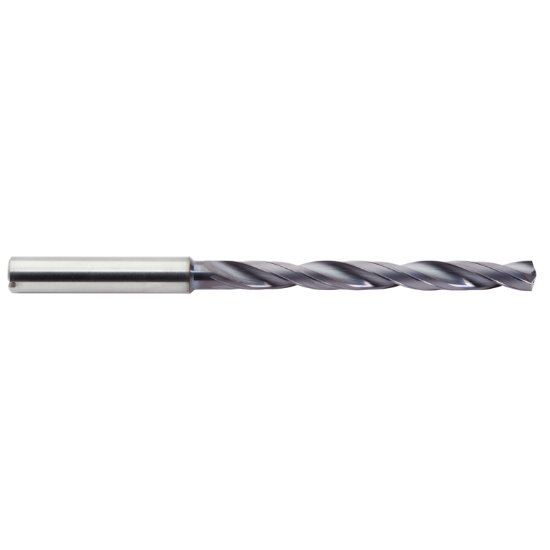

Picture of M.A. Ford CXDCL4062AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.406 Dia 0.472 Shank 6.102 OAL 2 Flute 4.173 Flute Length Carbide AlTiN

M.A. Ford CXDCL4062AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.406 Dia 0.472 Shank 6.102 OAL 2 Flute 4.173 Flute Length Carbide AlTiN

Part Number: MAF07203 ISO: CXDCL4062AP
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1118276
Vendor: Sussex Tool and Supply
$383.36

Description

M.A. FORD CXDCL4062AP CXD 13/32 8X COOLANT DRL Carbide AlTiN Cyclone XD 8.0XD Flute 4.1730 105.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Multi Spindle Yes
Dimensions & Sizing
Overall Length 6.1024 155.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4062 10.32MM - 13/32
Flute Length 4.1730 105.99MM
Dia Deep 8.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Cut Dia Min 0.4063 10.32MM - 13/32
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
