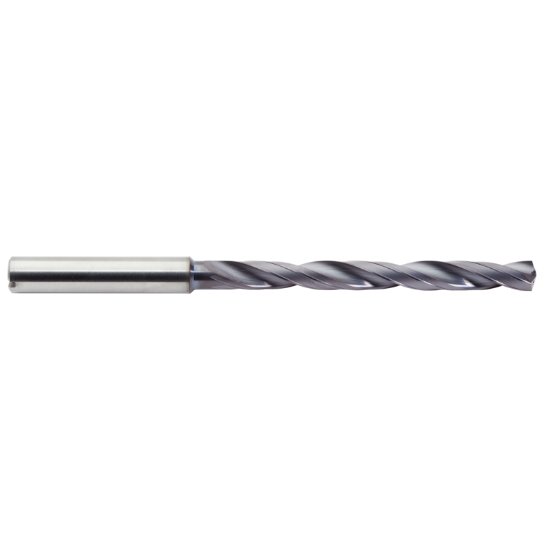

Picture of M.A. Ford CXDCL3680AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.368 Dia 0.393 Shank 5.472 OAL 2 Flute 3.740 Flute Length Carbide AlTiN

M.A. Ford CXDCL3680AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.368 Dia 0.393 Shank 5.472 OAL 2 Flute 3.740 Flute Length Carbide AlTiN

Part Number: MAF07190 ISO: CXDCL3680AP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118272
Vendor: Sussex Tool and Supply
$213.35
M.A. FORD CXDCL3680AP CXD U 8X COOLANT DRL Carbide AlTiN Cyclone XD 8.0XD Flute 3.7400 95.00MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.3937 10.00MM
Overall Length 5.4724 139.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Tool Dia 0.3680 9.35MM - U
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 3.7400 95.00MM
Cut Dia Min 0.3680 9.34MM - U
Dia Deep 8.0x Dia
Multi Spindle Yes
