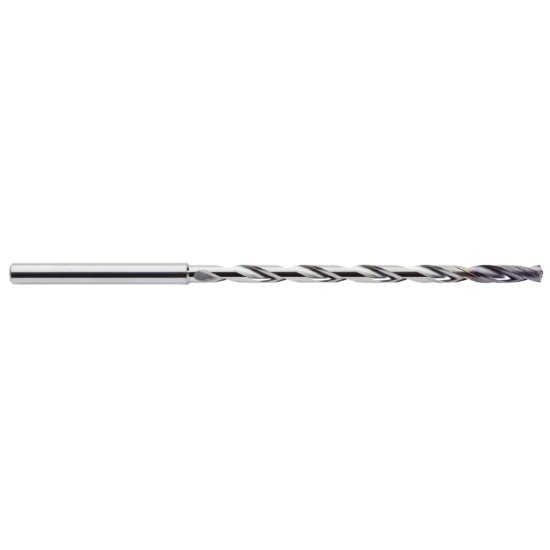

Picture of M.A. Ford CXDCEM1020AP Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.401 Dia 0.472 Shank 11.14 OAL 2 Flute 7.520 Flute Length Carbide AlTiN

M.A. Ford CXDCEM1020AP Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.401 Dia 0.472 Shank 11.14 OAL 2 Flute 7.520 Flute Length Carbide AlTiN

Part Number: MAF07482 ISO: CXDCEM1020AP
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1118236
Vendor: Sussex Tool and Supply
$732.76

Description

M.A. FORD CXDCEM1020AP 10.2MM CXD 15X DRILL Carbide AlTiN Cyclone 15.0XD Flute 7.5200 191.01MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Multi Spindle Yes
Dimensions & Sizing
Overall Length 11.1417 283.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4016 10.20MM
Flute Length 7.5200 191.01MM
Dia Deep 15.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.4016 10.20MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
