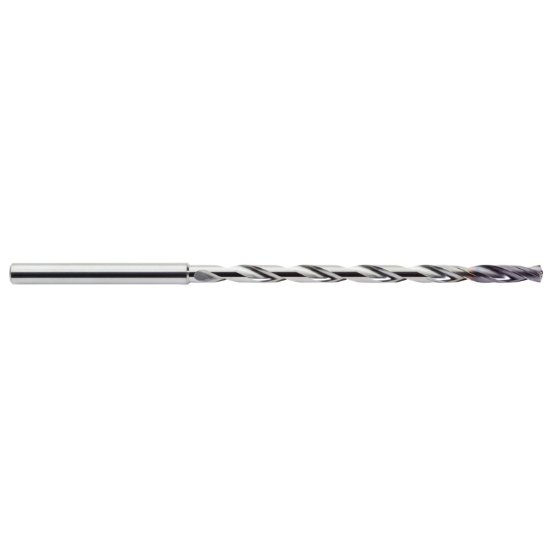

Picture of M.A. Ford CXDCEM0800AP Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.315 Dia 0.315 Shank 7.874 OAL 2 Flute 5.906 Flute Length Carbide AlTiN

M.A. Ford CXDCEM0800AP Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.315 Dia 0.315 Shank 7.874 OAL 2 Flute 5.906 Flute Length Carbide AlTiN

Part Number: MAF07470 ISO: CXDCEM0800AP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118226
Vendor: Sussex Tool and Supply
$404.04
M.A. FORD CXDCEM0800AP 8.0MM CXD 15X DEEP DRILL Carbide AlTiN Cyclone 15.0XD Flute 5.9060 150.01MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.3150 8.00MM
Overall Length 7.8740 200.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.3150 8.00MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 5.9060 150.01MM
Cut Dia Min 0.3150 8.00MM
Dia Deep 15.0x Dia
Multi Spindle Yes
