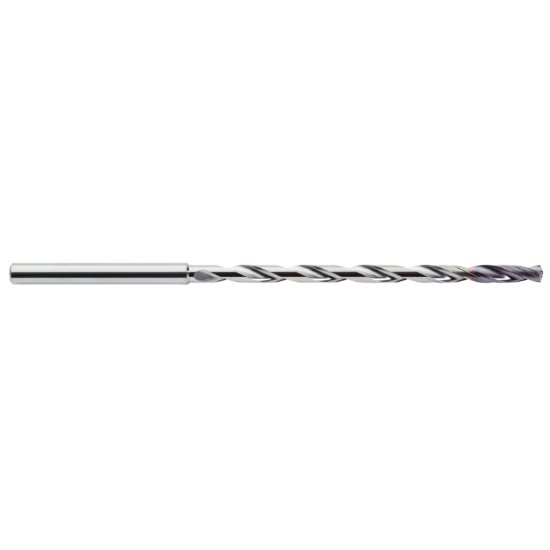

Picture of M.A. Ford CXDCEM0560AP Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.220 Dia 0.236 Shank 6.378 OAL 2 Flute 4.134 Flute Length Carbide AlTiN

M.A. Ford CXDCEM0560AP Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.220 Dia 0.236 Shank 6.378 OAL 2 Flute 4.134 Flute Length Carbide AlTiN

Part Number: MAF07454 ISO: CXDCEM0560AP
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1118213
Vendor: Sussex Tool and Supply
$408.99

Description

M.A. FORD CXDCEM0560AP 5.6MM CXD 15X DEEP DRILL Carbide AlTiN Cyclone 15.0XD Flute 4.1340 105.00MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Multi Spindle Yes
Dimensions & Sizing
Overall Length 6.3780 162.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.2205 5.60MM
Flute Length 4.1340 105.00MM
Dia Deep 15.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.2205 5.60MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
