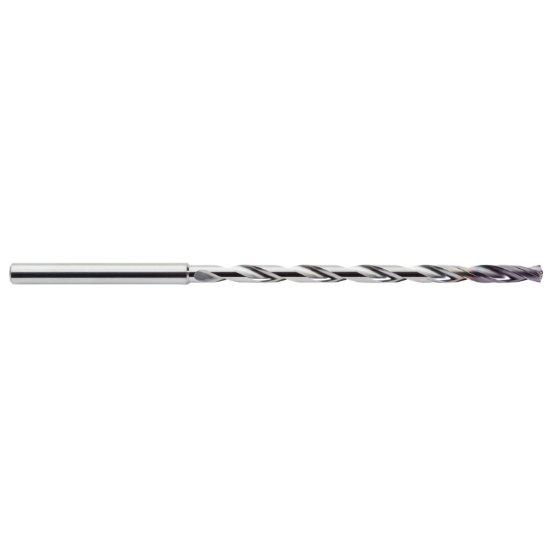

Picture of M.A. Ford CXDCEM0520AP Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.204 Dia 0.236 Shank 6.378 OAL 2 Flute 3.858 Flute Length Carbide AlTiN

M.A. Ford CXDCEM0520AP Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.204 Dia 0.236 Shank 6.378 OAL 2 Flute 3.858 Flute Length Carbide AlTiN

Part Number: MAF07450 ISO: CXDCEM0520AP
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1118210
Vendor: Sussex Tool and Supply
$408.99

Description

M.A. FORD CXDCEM0520AP 5.2MM CXD 15X DEEP DRILL Carbide AlTiN Cyclone 15.0XD Flute 3.8580 97.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Multi Spindle Yes
Dimensions & Sizing
Overall Length 6.3780 162.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.2047 5.20MM
Flute Length 3.8580 97.99MM
Dia Deep 15.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.2047 5.20MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
