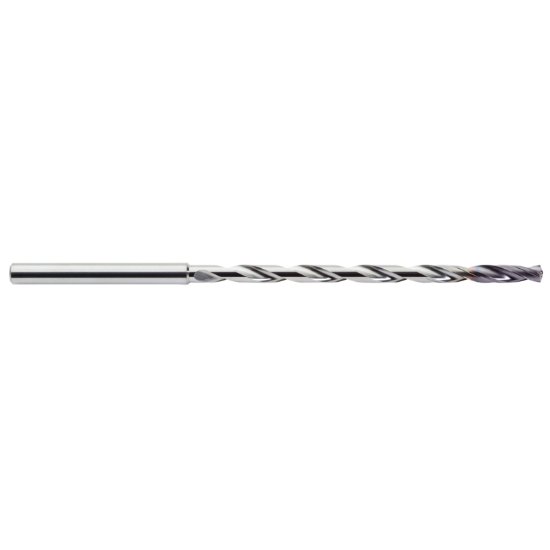

Picture of M.A. Ford CXDCE1875AP Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.187 Dia 0.196 Shank 5.629 OAL 2 Flute 3.504 Flute Length Carbide AlTiN

M.A. Ford CXDCE1875AP Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.187 Dia 0.196 Shank 5.629 OAL 2 Flute 3.504 Flute Length Carbide AlTiN

Part Number: MAF07446

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118190
Vendor: Sussex Tool and Supply
$281.74
Products specifications
Attribute name Attribute value
Shipping State IOWA
Cutter Type Carbide Drill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.1969
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 5.6299 143.00MM
Shank Or Pilot Diameter 0.1969 5.00MM
Family Group Cyclone
Coolant Thru Thru Coolant
Coating AlTiN
Mach Side Connection Size 0.1969 5.00MM
Tool Diameter 0.1875 4.76MM - 3/16
Flutes Or Inserts 2
Type of Tool Drill
Included Angle 140° - 142°
Flute Length 3.5040 89.00MM
Cut Diameter Min 0.1875 4.76MM - 3/16
Diameter Deep 15.0x Dia
Multi Spindle Yes
