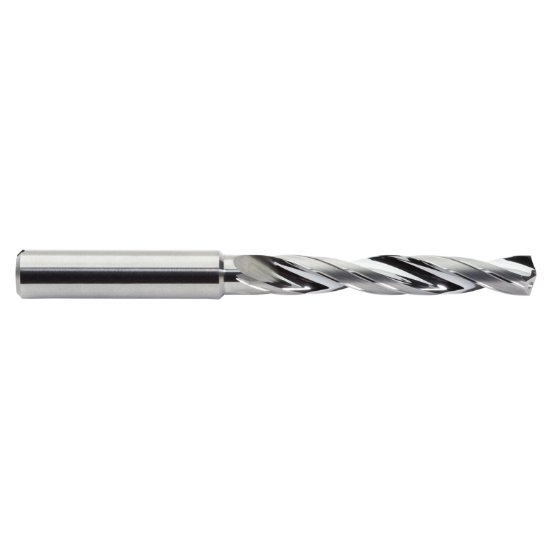

Picture of M.A. Ford CDACRM0530 Carbide Drill Coolant Thru Carbide 140° - 142° 0.208 Dia 0.236 Shank 3.228 OAL 2 Flute 1.732 Flute Length Carbide

M.A. Ford CDACRM0530 Carbide Drill Coolant Thru Carbide 140° - 142° 0.208 Dia 0.236 Shank 3.228 OAL 2 Flute 1.732 Flute Length Carbide

Part Number: MAF07344 ISO: CDACRM0530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118117
Vendor: Sussex Tool and Supply
$73.38
M.A. FORD CDACRM0530 5.3MM X 44 X 82 COOLANT Carbide Uncoated Cyclone 5.0XD Flute 1.7320 43.99MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Aluminum, Brass, Copper, Plastic
Mach Side Connection Size 0.2362 6.00MM
Overall Length 3.2283 82.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.2086 5.30MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 1.7320 43.99MM
Cut Dia Min 0.2086 5.30MM
Dia Deep 5.0x Dia
Multi Spindle Yes
