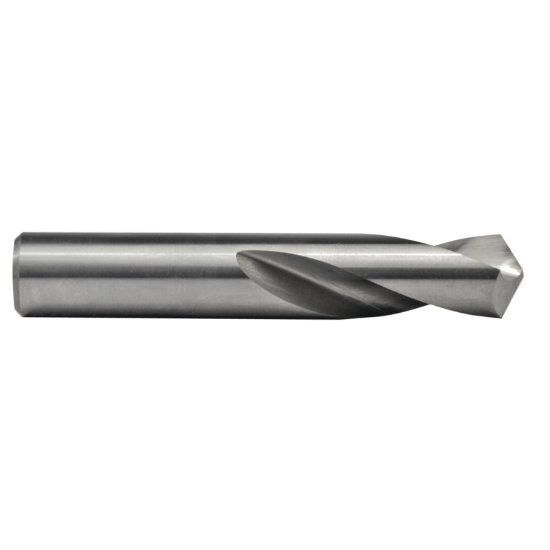

Picture of M.A. Ford 40350000A Spot Drill Solid Carbide 120° 0.500 Dia 0.500 Shank 3.000 OAL 2 Flute 1.563 Flute Length Carbide AlTiN

M.A. Ford 40350000A Spot Drill Solid Carbide 120° 0.500 Dia 0.500 Shank 3.000 OAL 2 Flute 1.563 Flute Length Carbide AlTiN

Part Number: MAF76306 ISO: 40350000A
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1119507
Vendor: Sussex Tool and Supply
$157.68

Description

M.A. FORD 40350000A 1/2 NC SPOT 120 ALTIMA Carbide AlTiN Twister® GP Flute 1.5630 39.70MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Spot Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Drill Length Type Stub
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Flute Length 1.5630 39.70MM
Geometry & Angles
Included Angle 120°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.5000 12.70MM - 1/2
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
