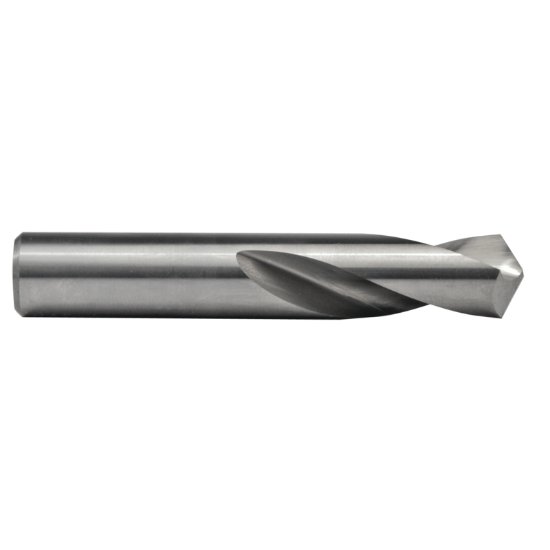

Picture of M.A. Ford 40337500A Spot Drill Solid Carbide 120° 0.375 Dia 0.375 Shank 2.500 OAL 2 Flute 1.000 Flute Length Carbide AlTiN

M.A. Ford 40337500A Spot Drill Solid Carbide 120° 0.375 Dia 0.375 Shank 2.500 OAL 2 Flute 1.000 Flute Length Carbide AlTiN

Part Number: MAF78052 ISO: 40337500A
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1119503
Vendor: Sussex Tool and Supply
$95.60

Description

M.A. FORD 40337500A 3/8 120 DEG SPOT ALTIMA Carbide AlTiN Twister® GP Flute 1.0000 25.40MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Spot Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Drill Length Type Stub
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 2
Tool Dia 0.3750 9.53MM - 3/8
Flute Length 1.0000 25.40MM
Geometry & Angles
Included Angle 120°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.3750 9.53MM - 3/8
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
