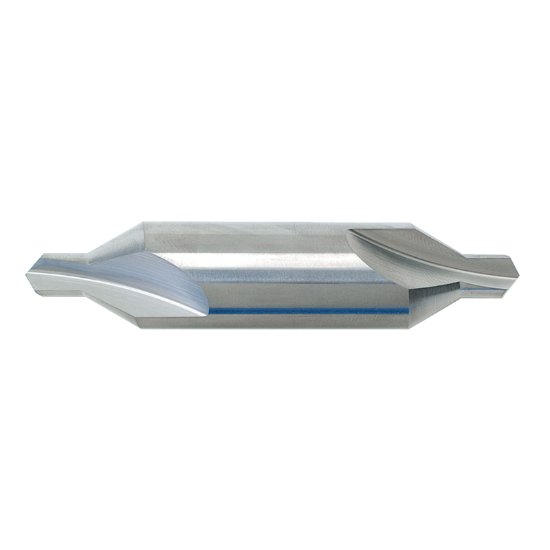

Picture of M.A. Ford 40202500C CenterDrill Solid Carbide 60° 0.025 Dia 0.125 Shank 1.500 OAL 2 Flute Flute Length Carbide TiCN

M.A. Ford 40202500C CenterDrill Solid Carbide 60° 0.025 Dia 0.125 Shank 1.500 OAL 2 Flute Flute Length Carbide TiCN

Part Number: MAF17427 ISO: 40202500C
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1119459
Vendor: Sussex Tool and Supply
$42.84

Description

M.A. FORD 40202500C 40202500 TICN COAT Carbide TiCN Twister® GP Flute Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Center Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Drill Length Type Stub
Dimensions & Sizing
Overall Length 1.5000 38.10MM
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 2
Tool Dia 0.0250 0.64MM - #72
Geometry & Angles
Included Angle 60°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.0250 0.64MM - #72
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TICN
