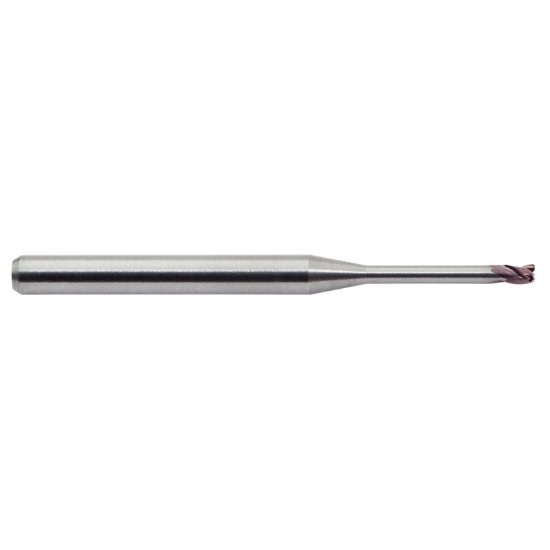

Picture of M.A. Ford 3MVSM0050R.10N5AH Dia 0.50mm SH 0.1575 LOC 0.0295 OAL1.968 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0039 0.10mm TuffCut® 3MV

M.A. Ford 3MVSM0050R.10N5AH Dia 0.50mm SH 0.1575 LOC 0.0295 OAL1.968 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0039 0.10mm TuffCut® 3MV

Part Number: MAF39072 0.020 x 0.157 x 0.030 x 1.969

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1244000
Vendor: Sussex Tool and Supply
$59.69
M.A. FORD 3MVSM0050R.10N5AH Variable Helix End Mill Carbide AlTiN Corner Radius 0.0039 0.10MM Standard Flute Flutes 3 Single End TuffCut® 3MV Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating ALTIN
Mach Side Connection Size 0.1575 4.00MM
Overall Length 1.9685 50.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 3
Tool Dia 0.0197 0.50MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.0295 0.75MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0039 0.10MM
Inch/Metric Metric
Helix Angle Variable
Center Cutting Center Cutting
Neck Length 0.0984 2.50MM
