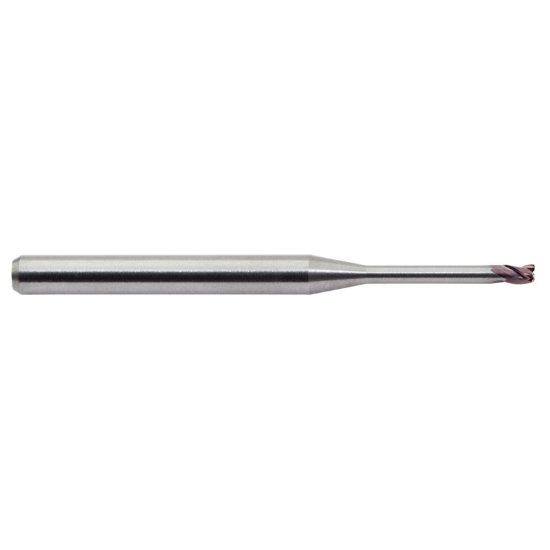

Picture of M.A. Ford 3Mvs0781R.005Ah Dia 5/64 Sh 0.1250 Loc 0.1170 Oal1.50 End Mill Standard Flute Variable Helix Carbide Altin Single End Corner Radius0.0050 0.13mm Tuffcut® 3Mv

M.A. Ford 3Mvs0781R.005Ah Dia 5/64 Sh 0.1250 Loc 0.1170 Oal1.50 End Mill Standard Flute Variable Helix Carbide Altin Single End Corner Radius0.0050 0.13mm Tuffcut® 3Mv

Part Number: MAF39110

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1003216
Vendor: Sussex Tool and Supply
$47.93

M.A. FORD carbide end mill with AlTiN coating. Standard flute variable helix single end corner radius 0.0050. 0-13mm cylindrical machine post connection. Made in USA.

Key Details

Materials & Finish

  • Coating: AlTiN
  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.1250

Grades & Coatings

  • Alternate Description: M.A. FORD 3MVS0781R.005AH Variable Helix End Mill Carbide AlTiN Corner Radius 0.0050 0.13MM Standard Flute Flutes 3 Single End TuffCut® 3MV

Other Details

  • Brand: M.A. FORD
  • Shipping State: IOWA
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard flute and variable helix design. Performs corner cutting with 0.0050 radius. Suitable for end milling operations.

Composition

Carbide tool material with AlTiN coating. Cylindrical connection 0.1250. Made in USA.

Typical Uses

End milling on machine with cylindrical toolpost. Used in standard flute operations. Applies to cutting with 0.13mm corner radius.

Products specifications
Attribute name Attribute value
Shipping State IOWA
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.1250
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 1.5000 38.10MM- 1-1/2
Shank Or Pilot Diameter 0.1250 3.17MM - 1/8
Family Group TuffCut® 3MV
Coolant Thru Non Coolant
Coating AlTiN
Mach Side Connection Size 0.1250 3.18MM - 1/8
Tool Diameter 0.0781 1.98MM - 5/64
Flutes Or Inserts 3
Length Type Standard
Performance Rating High Performance
Length Of Cut 0.1170 2.97MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0050 0.13MM
Inch Or Metric Inch
Helix Angle Variable
Center Cutting Center Cutting
