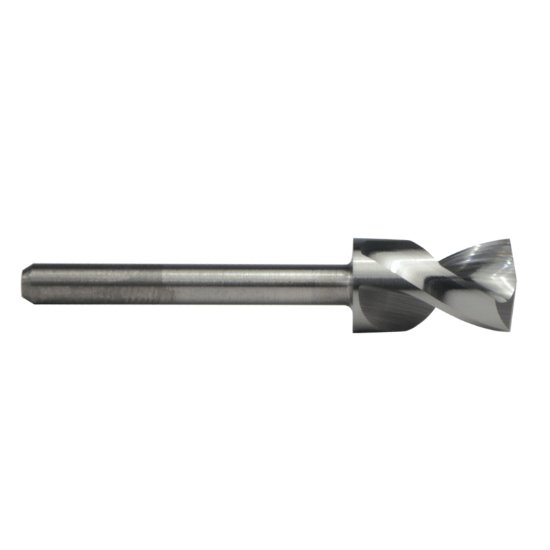

Picture of M.A. Ford 30624410 Circuit Board Solid Carbide 165° 0.244 Dia 0.125 Shank 1.496 OAL 2 Flute 0.480 Flute Length Carbide

M.A. Ford 30624410 Circuit Board Solid Carbide 165° 0.244 Dia 0.125 Shank 1.496 OAL 2 Flute 0.480 Flute Length Carbide

Part Number: MAF36193 ISO: 30624410

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1119449
Vendor: Sussex Tool and Supply
$34.06
M.A. FORD 30624410 6.20M CB-DR 165 .480 FL Carbide Uncoated Twister® GP Flute 0.4800 12.19MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Circuit Board Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Mach Side Connection Size 0.1250 3.18MM
Overall Length 1.4960 38.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 2
Tool Dia 0.2441 6.20MM
Type Of Tool Drill
Included Angle 165°
Flute Length 0.4800 12.19MM
Cut Dia Min 0.2441 6.20MM
Drill Length Type Stub
