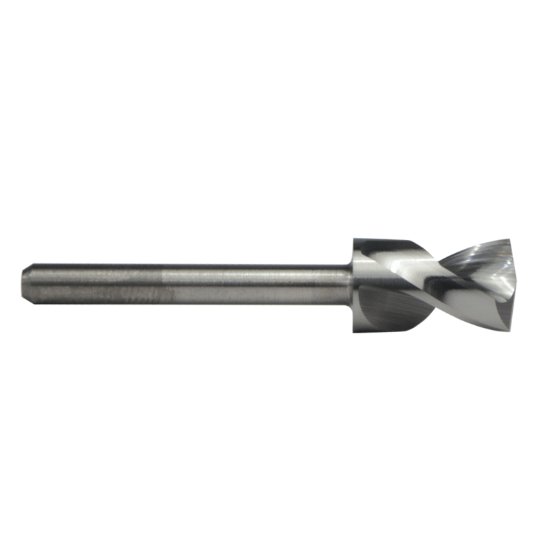

Picture of M.A. Ford 30622830 Circuit Board Solid Carbide 165° 0.228 Dia 0.125 Shank 1.496 OAL 2 Flute 0.480 Flute Length Carbide

M.A. Ford 30622830 Circuit Board Solid Carbide 165° 0.228 Dia 0.125 Shank 1.496 OAL 2 Flute 0.480 Flute Length Carbide

Part Number: MAF36173 ISO: 30622830
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1119437
Vendor: Sussex Tool and Supply
$33.19

Description

M.A. FORD 30622830 5.80M CB-DR 165 .480 FLT Carbide Uncoated Twister® GP Flute 0.4800 12.19MM Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Circuit Board Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Drill Length Type Stub
Dimensions & Sizing
Overall Length 1.4960 38.00MM
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 2
Tool Dia 0.2283 5.80MM
Flute Length 0.4800 12.19MM
Geometry & Angles
Included Angle 165°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.2283 5.80MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
