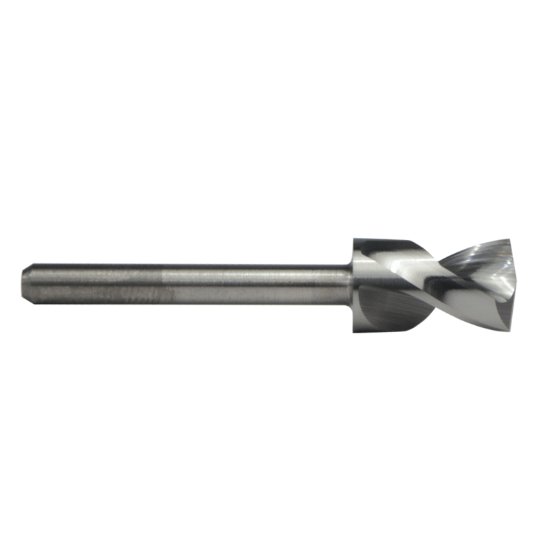

Picture of M.A. Ford 30620400 Circuit Board Solid Carbide 165° 0.204 Dia 0.125 Shank 1.500 OAL 2 Flute 0.480 Flute Length Carbide

M.A. Ford 30620400 Circuit Board Solid Carbide 165° 0.204 Dia 0.125 Shank 1.500 OAL 2 Flute 0.480 Flute Length Carbide

Part Number: MAF36135 ISO: 30620400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1119418
Vendor: Sussex Tool and Supply
$25.73
M.A. FORD 30620400 #6 CB-DR 165 .480 FLT Carbide Uncoated Twister® GP Flute 0.4800 12.19MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Circuit Board Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Mach Side Connection Size 0.1250 3.18MM
Overall Length 1.5000 38.10MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 2
Tool Dia 0.2040 5.18MM - #6
Type Of Tool Drill
Included Angle 165°
Flute Length 0.4800 12.19MM
Cut Dia Min 0.2040 5.18MM - #6
Drill Length Type Stub
