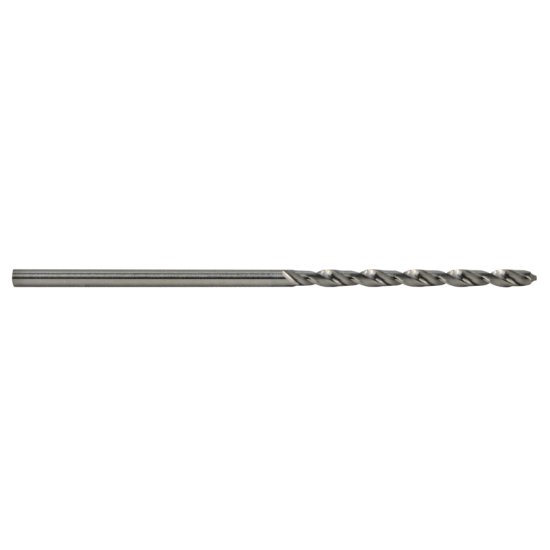

Picture of M.A. Ford 30017700C Carbide Drill Solid Carbide 118° 0.177 Dia 0.177 Shank 1.500 OAL 2 Flute 0.750 Flute Length Carbide TiCN

M.A. Ford 30017700C Carbide Drill Solid Carbide 118° 0.177 Dia 0.177 Shank 1.500 OAL 2 Flute 0.750 Flute Length Carbide TiCN

Part Number: MAF76032 ISO: 30017700C
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1117665
Vendor: Sussex Tool and Supply
$34.00

Description

M.A. FORD 30017700C TICN NO 16 DRL STR-SHK Carbide TiCN Twister® GP 5.0XD Flute 0.7500 19.05MM Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 1.5000 38.10MM
Shank/Pilot Dia 0.1770 4.50MM - #16
Flutes/Inserts 2
Tool Dia 0.1770 4.50MM - #16
Flute Length 0.7500 19.05MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 118°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.1770 4.49MM - #16
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TICN
