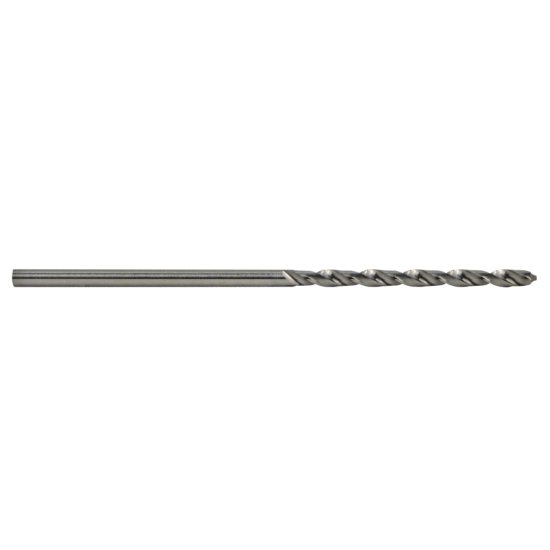

Picture of M.A. Ford 30012400A Carbide Drill Solid Carbide 118° 0.124 Dia 0.124 Shank 1.496 OAL 2 Flute 0.630 Flute Length Carbide AlTiN

M.A. Ford 30012400A Carbide Drill Solid Carbide 118° 0.124 Dia 0.124 Shank 1.496 OAL 2 Flute 0.630 Flute Length Carbide AlTiN

Part Number: MAF77966 ISO: 30012400A
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$26.77
SKU: 1117640

Description

M.A. FORD 30012400A 3.15MM STR-SHK ALTIMA Carbide AlTiN Twister® GP 5.0XD Flute 0.6300 16.00MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 1.4961 38.00MM
Shank/Pilot Dia 0.1240 3.15MM
Flutes/Inserts 2
Tool Dia 0.1240 3.15MM
Flute Length 0.6300 16.00MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 118°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.1240 3.15MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
