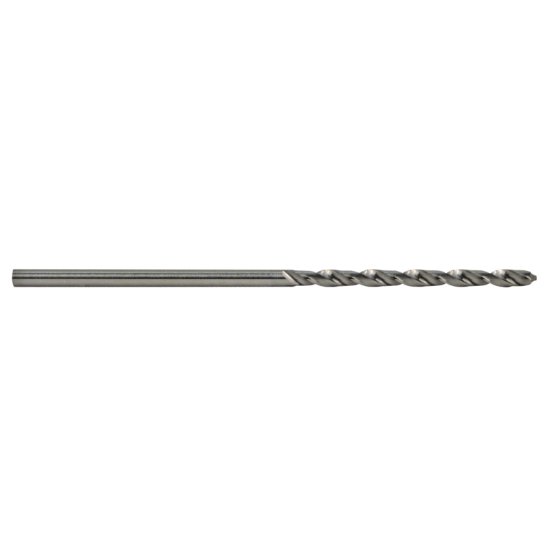

Picture of M.A. Ford 30009380 Carbide Drill Solid Carbide 118° 0.093 Dia 0.093 Shank 1.500 OAL 2 Flute 0.625 Flute Length Carbide

M.A. Ford 30009380 Carbide Drill Solid Carbide 118° 0.093 Dia 0.093 Shank 1.500 OAL 2 Flute 0.625 Flute Length Carbide

Part Number: MAF30329 ISO: 30009380
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1117607
Vendor: Sussex Tool and Supply
$14.85

Description

M.A. FORD 30009380 3/32 DRILL STR-SHK Carbide Uncoated Twister® GP 5.0XD Flute 0.6250 15.88MM Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 1.5000 38.10MM
Shank/Pilot Dia 0.0938 2.38MM - 3/32
Flutes/Inserts 2
Tool Dia 0.0938 2.38MM - 3/32
Flute Length 0.6250 15.88MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 118°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.0938 2.38MM - 3/32
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
