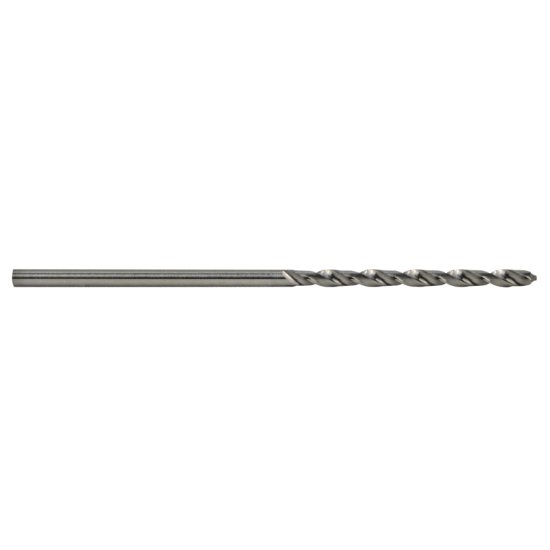

Picture of M.A. Ford 30006490A Carbide Drill Solid Carbide 118° 0.065 Dia 0.065 Shank 1.496 OAL 2 Flute 0.630 Flute Length Carbide AlTiN

M.A. Ford 30006490A Carbide Drill Solid Carbide 118° 0.065 Dia 0.065 Shank 1.496 OAL 2 Flute 0.630 Flute Length Carbide AlTiN

Part Number: MAF76030 ISO: 30006490A
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1117576
Vendor: Sussex Tool and Supply
$20.19

Description

M.A. FORD 30006490A 1.65MM DRL ALTIMA Carbide AlTiN Twister® GP 5.0XD Flute 0.6300 16.00MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 1.4961 38.00MM
Shank/Pilot Dia 0.0650 1.65MM
Flutes/Inserts 2
Tool Dia 0.0650 1.65MM
Flute Length 0.6300 16.00MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 118°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.0650 1.65MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
