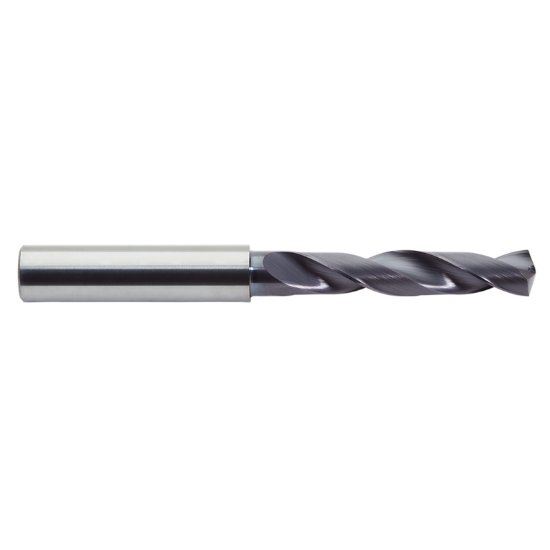

Picture of M.A. Ford 2XDSS5512AP Carbide Drill Solid Carbide 140° - 142° 0.551 Dia 0.551 Shank 4.212 OAL 2 Flute 2.126 Flute Length Carbide AlTiN

M.A. Ford 2XDSS5512AP Carbide Drill Solid Carbide 140° - 142° 0.551 Dia 0.551 Shank 4.212 OAL 2 Flute 2.126 Flute Length Carbide AlTiN

Part Number: MAF14716 ISO: 2XDSS5512AP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1117483
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
M.A. FORD 2XDSS5512AP 14.0MM SOLID ALTIMA PLUS Carbide AlTiN Twister XD® 3.0XD Flute 2.1260 54.00MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.5512 14.00MM
Overall Length 4.2125 107.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5512 14.00MM
Flutes/Inserts 2
Tool Dia 0.5512 14.00MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 2.1260 54.00MM
Cut Dia Min 0.5512 14.00MM
Dia Deep 3.0x Dia
