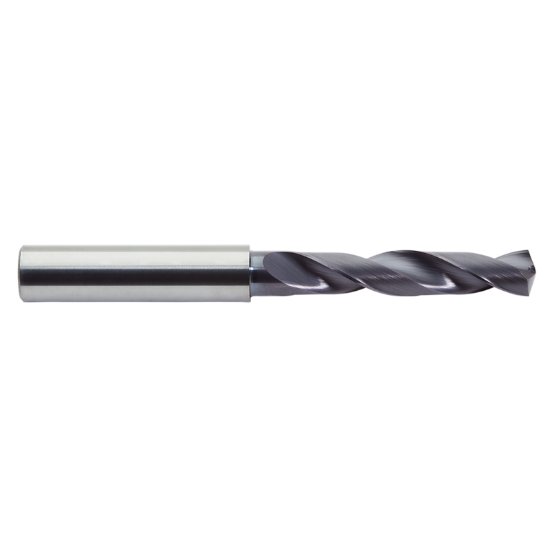

Picture of M.A. Ford 2XDSS2812A Carbide Drill Solid Carbide 140° - 142° 0.281 Dia 0.312 Shank 3.250 OAL 2 Flute 1.500 Flute Length Carbide AlTiN

M.A. Ford 2XDSS2812A Carbide Drill Solid Carbide 140° - 142° 0.281 Dia 0.312 Shank 3.250 OAL 2 Flute 1.500 Flute Length Carbide AlTiN

Part Number: MAF02198 ISO: 2XDSS2812A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1117398
Vendor: Sussex Tool and Supply
$70.54
M.A. FORD 2XDSS2812A DRILL 9/32 SOLID STUB Carbide AlTiN Twister XD® 3.0XD Flute 1.5000 38.10MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.3125 7.94MM
Overall Length 3.2500 82.55MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 2
Tool Dia 0.2812 7.14MM - 9/32
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 1.5000 38.10MM
Cut Dia Min 0.2810 7.14MM - 9/32 - K
Dia Deep 3.0x Dia
