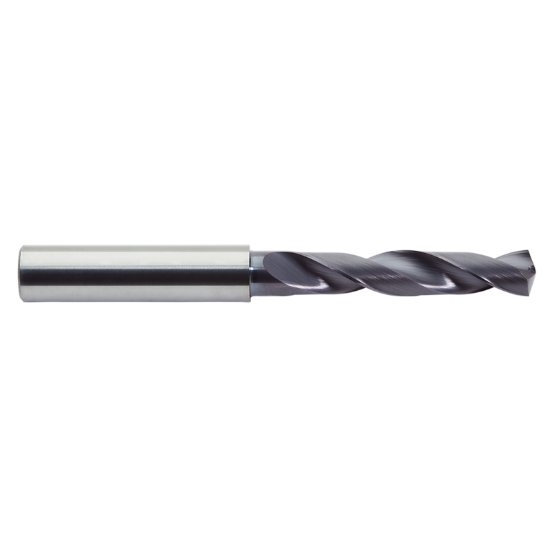

Picture of M.A. Ford 2XDSS1654T Carbide Drill Solid Carbide 140° - 142° 0.165 Dia 0.196 Shank 2.244 OAL 2 Flute 1.024 Flute Length Carbide TiN

M.A. Ford 2XDSS1654T Carbide Drill Solid Carbide 140° - 142° 0.165 Dia 0.196 Shank 2.244 OAL 2 Flute 1.024 Flute Length Carbide TiN

Part Number: MAF76014 ISO: 2XDSS1654T
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1117349
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

M.A. FORD 2XDSS1654T TIN DRL 4.2MM SOLID STUB Carbide TiN Twister XD® 3.0XD Flute 1.0240 26.01MM Carbide Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.2440 57.00MM
Shank/Pilot Dia 0.1969 5.00MM
Flutes/Inserts 2
Tool Dia 0.1654 4.20MM
Flute Length 1.0240 26.01MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Cut Dia Min 0.1654 4.20MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TIN
Only registered users can write reviews
