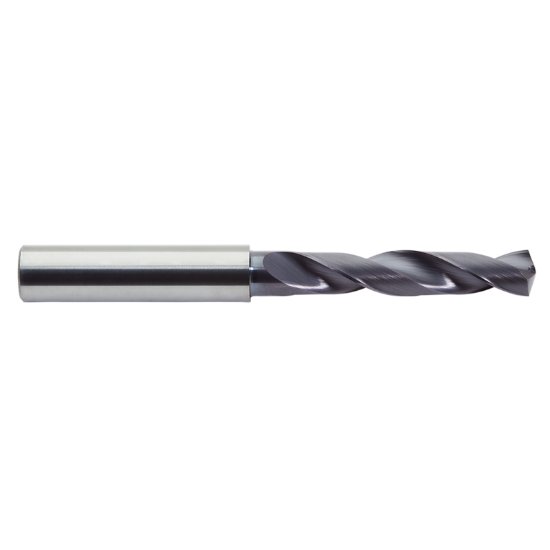

Picture of M.A. Ford 2XDSS0984A Carbide Drill Solid Carbide 140° - 142° 0.098 Dia 0.098 Shank 1.692 OAL 2 Flute 0.552 Flute Length Carbide AlTiN

M.A. Ford 2XDSS0984A Carbide Drill Solid Carbide 140° - 142° 0.098 Dia 0.098 Shank 1.692 OAL 2 Flute 0.552 Flute Length Carbide AlTiN

Part Number: MAF22601 ISO: 2XDSS0984A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1117319
Vendor: Sussex Tool and Supply
$31.05
M.A. FORD 2XDSS0984A DRILL 2.5MM SOLID STUB Carbide AlTiN Twister XD® 3.0XD Flute 0.5520 14.02MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.0984 2.50MM
Overall Length 1.6929 43.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.0984 2.50MM
Flutes/Inserts 2
Tool Dia 0.0984 2.50MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 0.5520 14.02MM
Cut Dia Min 0.0984 2.50MM
Dia Deep 3.0x Dia
