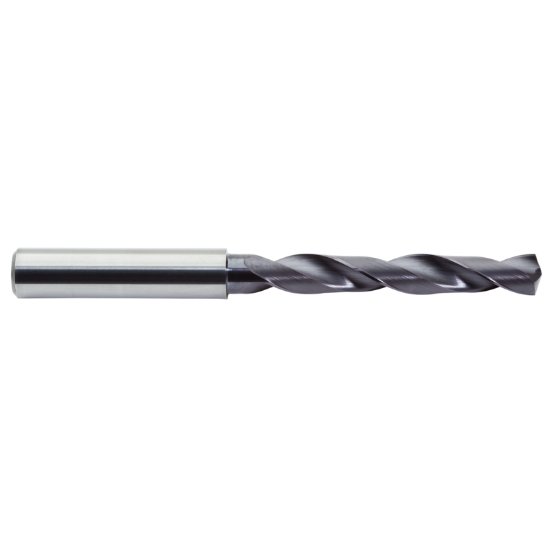

Picture of M.A. Ford 2XDSR2420A Carbide Drill Solid Carbide 140° - 142° 0.242 Dia 0.250 Shank 3.250 OAL 2 Flute 1.740 Flute Length Carbide AlTiN

M.A. Ford 2XDSR2420A Carbide Drill Solid Carbide 140° - 142° 0.242 Dia 0.250 Shank 3.250 OAL 2 Flute 1.740 Flute Length Carbide AlTiN

Part Number: MAF02418 ISO: 2XDSR2420A
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1117194
Vendor: Sussex Tool and Supply
$108.48

Description

M.A. FORD 2XDSR2420A DRILL C SOLID REGULAR Carbide AlTiN Twister XD® 5.0XD Flute 1.7400 44.20MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.2500 82.55MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 2
Tool Dia 0.2420 6.15MM - C
Flute Length 1.7400 44.20MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Cut Dia Min 0.2420 6.15MM - C
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
