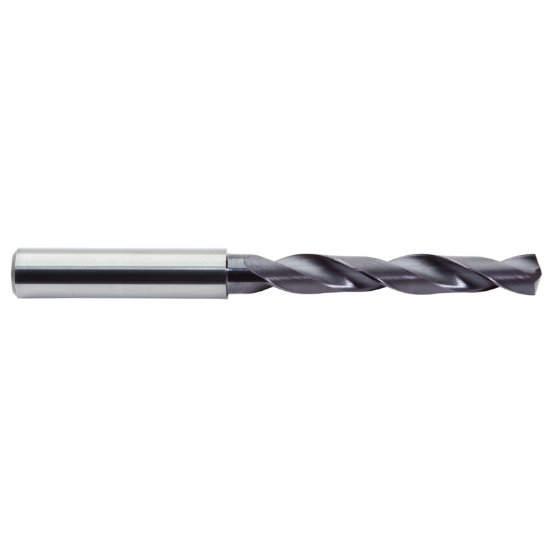

Picture of M.A. Ford 2XDSR2283T Carbide Drill Solid Carbide 140° - 142° 0.228 Dia 0.236 Shank 3.228 OAL 2 Flute 1.575 Flute Length Carbide TiN

M.A. Ford 2XDSR2283T Carbide Drill Solid Carbide 140° - 142° 0.228 Dia 0.236 Shank 3.228 OAL 2 Flute 1.575 Flute Length Carbide TiN

Part Number: MAF75984 ISO: 2XDSR2283T
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1117187
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

M.A. FORD 2XDSR2283T TIN DRL 5.8MM SOLID REG Carbide TiN Twister XD® 5.0XD Flute 1.5750 40.01MM Carbide Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.2283 82.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.2283 5.80MM
Flute Length 1.5750 40.01MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Cut Dia Min 0.2283 5.80MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TIN
