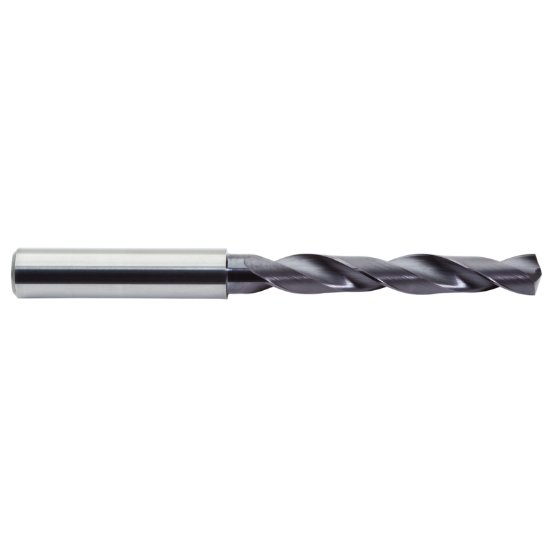

Picture of M.A. Ford 2XDSR0394T Carbide Drill Solid Carbide 140° - 142° 0.039 Dia 0.039 Shank 1.338 OAL 2 Flute 0.472 Flute Length Carbide TiN

M.A. Ford 2XDSR0394T Carbide Drill Solid Carbide 140° - 142° 0.039 Dia 0.039 Shank 1.338 OAL 2 Flute 0.472 Flute Length Carbide TiN

Part Number: MAF75960 ISO: 2XDSR0394T
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1117100
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

M.A. FORD 2XDSR0394T TIN DRL 1.0MM SOLID REG Carbide TiN Twister XD® 5.0XD Flute 0.4720 11.99MM Carbide Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 1.3386 34.00MM
Shank/Pilot Dia 0.0394 1.00MM
Flutes/Inserts 2
Tool Dia 0.0394 1.00MM
Flute Length 0.4720 11.99MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140° - 142°
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Cut Dia Min 0.0394 1.00MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TIN
